PiPo-Ducky

PiPo Ducky

A powerful WiFi USB Rubber Ducky built on the Raspberry Pi Pico W. Control it wirelessly from any device with a web browser.


What is PiPo Ducky?

PiPo Ducky turns a Raspberry Pi Pico W into a wireless HID device that can:

It’s like a Bash Bunny, but runs on a $4 Pico W with just a USB cable.


Features

Keyboard & Mouse HID

The Pico W emulates a USB keyboard and mouse. Send keystrokes, key combos, mouse movements, and clicks to the connected computer.

Captive Portal

When devices connect to the PiPo_Ducky WiFi, they automatically see a customizable login page (like hotel or airport WiFi). You control what the page shows - a fake login, a real website, or any HTML you want.

Web Interface

Control everything from your phone or laptop’s browser:

Script Management

LED Control

Control the onboard LED from scripts or the web UI for visual feedback.

Storage Bar

See how much space is used on the device at a glance.

Safety Confirmation

Every script requires confirmation before running, with a warning about what it will do.


How It Works

┌──────────────────┐         WiFi AP          ┌──────────────────┐
│   Your Phone/    │ ◄──────────────────────► │    PiPo Ducky    │
│   Laptop         │    192.168.4.1           │    (Pico W)      │
│                  │                           │                  │
│   Web Browser    │   POST /api {script}     │   USB Cable      │
│   opens UI       │ ─────────────────────►   │   to computer    │
│                  │                           │        │         │
└──────────────────┘                           └────────┼────────┘
                                                        │
                                                        ▼
                                                ┌──────────────┐
                                                │  Host PC     │
                                                │  gets keyboard│
                                                │  & mouse input│
                                                └──────────────┘
  1. Plug the Pico W into a computer via USB
  2. The Pico W creates a WiFi access point (PiPo_Ducky)
  3. Connect to the WiFi from your phone/laptop
  4. Open 192.168.4.1 in your browser
  5. Write or load a script, click Run
  6. The Pico W sends the keyboard/mouse input to the host computer

Installation

Prerequisites

Steps

  1. Download CircuitPython Go to circuitpython.org and download the latest CircuitPython .uf2 file for Pico W.

  2. Flash CircuitPython
    • Hold the BOOTSEL button on the Pico W
    • While holding, plug the USB cable into your computer
    • A drive called RPI-RP2 will appear
    • Drag the .uf2 file onto the drive
    • The Pico W will restart automatically
  3. Install PiPo Ducky
    • A new drive called CIRCUITPY will appear
    • Copy all files from the pico-w folder to this drive
    • Make sure code.py, duck.py, boot.py, index.html are in the root
    • Make sure the lib folder is copied with all .mpy files inside
  4. Connect
    • The Pico W will restart and create a WiFi network
    • Connect to PiPo_Ducky (password: ppod_430d)
    • Open 192.168.4.1 in your browser
  5. Run Scripts
    • Write a script in the editor, or load one from the library
    • Click Run and confirm
    • The script executes on the connected computer

WiFi Credentials

Setting Value
SSID PiPo_Ducky
Password ppod_430d
IP Address 192.168.4.1

USB Drive Mode

By default, the USB mass storage drive is hidden (stealth mode). To enable it:

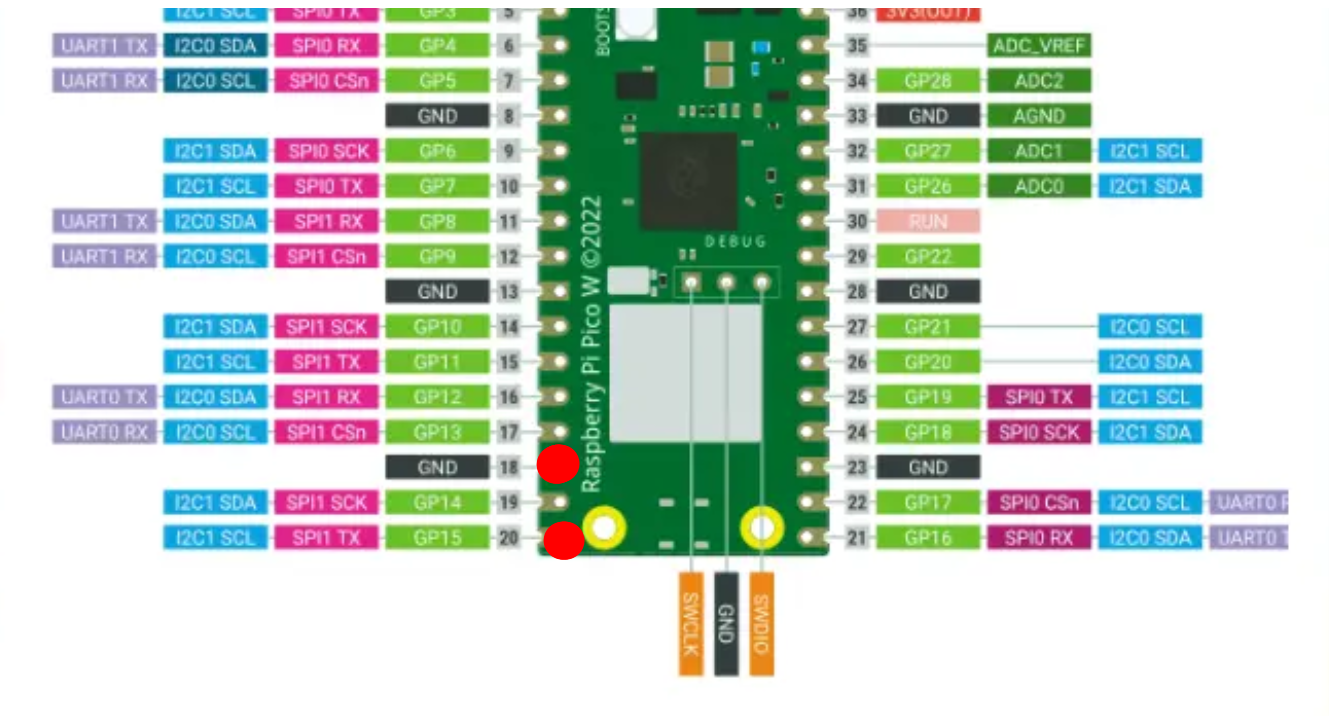

  1. Connect GP15 to GND on the Pico W (use a jumper wire)
  2. Unplug and replug the USB cable
  3. The CIRCUITPY drive will appear

You can also toggle USB storage from the Settings tab in the web UI.


Script Files

Scripts use the .picods file extension. They can be stored in two places:

Location Purpose
/scripts on CIRCUITPY drive On-device scripts, shown in web UI
PiPo-Ducky-scripts/ repo Community scripts, copy to device

Script Format

#T> Script Title
#D> Short description
#R> Requirements
#N> Notes

DELAY 1000
GUI r
STRING notepad
ENTER

See Scripting Documentation for the full command reference.


Web Interface

Scripts Tab

Portal Tab

Edit the HTML for the captive portal page. This is what people see when they connect to the WiFi. You can put:

Settings Tab


Scripts Library

The PiPo-Ducky-scripts/ directory contains community-made scripts:

Script Description
hello-world.picods Opens Notepad and types a greeting
mouse-demo.picods Demonstrates mouse movement and clicking
led-blink.picods Blinks the LED in a pattern
pipo-alert.picods Shows a popup alert
rickroll.picods Rickrolls someone via terminal
ctrlpnl.picods Opens Control Panel
fake-update.picods Shows a fake Windows update screen
fakeshutdown.picods Shows a fake shutdown screen
sys-prop.picods Opens System Properties

Contributing Scripts

  1. Fork the PiPo-Ducky-scripts repository
  2. Create your .picods script with metadata (#T>, #D>, #R>, #N>)
  3. Test it on a real device
  4. Submit a Pull Request

Troubleshooting

Problem Solution
Can’t connect to WiFi Make sure you’re near the Pico W, try forgetting and reconnecting
Page won’t load Try http://192.168.4.1 (not https)
Script doesn’t work Add more DELAY after actions, check if target software is open
LED doesn’t blink Check that boot.py is in the root of CIRCUITPY drive
USB drive not showing Connect GP15 to GND, then replug USB

Credits


License

GPL v3 - See LICENSE for details.
